Tianjin Tianyingtai Steel Pipe Co., Ltd. is one of the most credible manufacturers and suppliers of galvanzied and powder coated frame scaffolding in China. Welcome to consult the quotation and import cheap galvanzied and powder coated frame scaffolding made in China here from our factory.

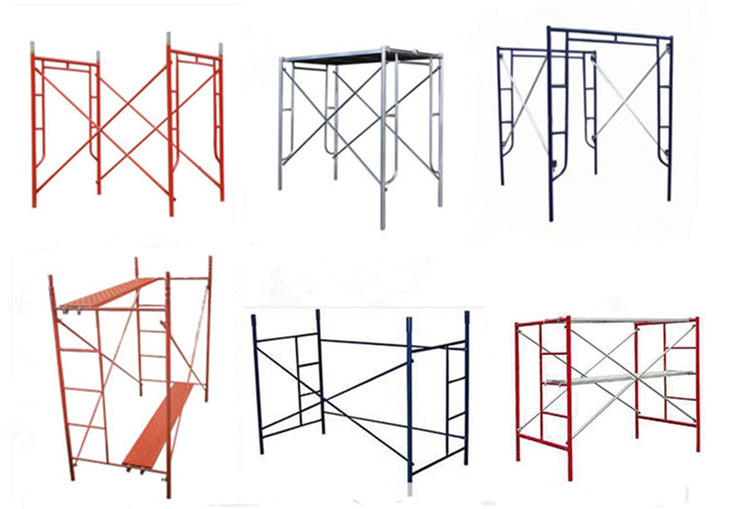

galvanzied and powder coated metal H frame scaffolding
| Item | Description | ||
| Moudle | Portal frame or Ladder type frame cross brace steel plank (with hook) |
||
| Materil | Q195 Q235 Q345 | ||
| Surface treatment | pre-galvanized Hot dip galvanized Color Painted |
||
| Technique | (1) Electronic Resistance Welded (ERW) (2) Electronic Fusion Welded (EFW) (3) Double Submerged Arc Welded (DSAW) |
||
| Delivery | (1) Container (2) Bulk carrier |
||
| Port of shipment | XinGang Port, Tianjin, China | ||
| Date of Delivery | 15~30 days in according to the quantity and specification of each order | ||
| Payment | L/C, T/T | ||
| Others | Fitting such as screws and flange can also be supplied | ||
Frame & Cross Brace
The Specifications of Frame and Cross Brace as follows
| Classification | Description | Specification | Theoretical weight | Material | Surface |
| Frame | Portal frame | 1219x1254 | 10.5kg | Q235 | painted, Electro-galvanized, Hot dip Galvanized, Pre-galvanized |
| Portal frame | 1219x1700 | 12.5kg | Q235 | ||
| Portal frame | 1219x1930 | 13.6kg | Q235 | ||
| Portal frame | 914x1700 | 10.4kg | Q235 | ||
| Ladder type frame | 1219x914 | 6.7kg | Q235 | ||
| Ladder type frame | 1219x1254 | 11.2kg | Q235 | ||
| Ladder type frame | 1219x1700 | 12.3kg | Q235 | ||
| Ladder type frame | 1219x1930 | 14.6kg | Q235 |
| Classification | Description | Specification | Theoretical weight | Material | Surface |
| Cross Brace | 21x1.4x1316 | 1.9kg | Q235 | painted, Electro-galvanized, Hot dip Galvanized, Pre-galvanized | |
| 21x1.4x1724 | 2.35kg | Q235 | |||
| 21x1.4x1928 | 2.67kg | Q235 | |||
| 21x1.4x2198 | 3kg | Q235 |
Steel Plank
The specifications of steel plank as follows
| Classification | Product Name | Specification | Surface | Remark |
Steel Plank |
Steel Plank | 200x45x1.0-2.0x1000-4000 | Hot Dip Galvanized Pre-galvanized |
Plate Rid or Square rib Thickness:1.0-2.0mm Length: Can be customized Hook: inner side diameter is 43mm or 50mm |
| Steel Plank | 210x45x1.0-2.0x1000-4000 | |||
| Steel Plank | 225x38x1.0-2.0x1000-4000 | |||
| Steel Plank | 240x45x1.0-2.0x1000-4000 | |||
| Steel Plank | 250x50x1.0-2.0x1000-4000 | |||
| Steel Plank | 300x50x1.0-2.0x1000-4000 | |||
Cat walk |
Cat walk | 200x45x1.0-2.0x1000-4000 | Hot Dip Galvanized Pre-galvanized |
|
| Cat walk | 210x45x1.0-2.0x1000-3000 | |||
| Cat walk | 220x38x1.0-2.0x1000-3000 | |||
| Cat walk | 225x38x1.0-2.0x1000-3000 | |||
| Cat walk | 240x45x1.0-2.0x1000-3000 | |||
| Cat walk | 250x50x1.0-2.0x1000-3000 | |||
| Cat walk | 300x50x1.0-2.0x1000-3000 | |||
| Cat walk | 400x45x1.0-2.0x1000-3000 | |||
| Cat walk | 420x45x1.0-2.0x1000-3000 | |||
| Cat walk | 480x45x1.0-2.0x1000-3000 | |||
| Cat walk | 500x45x1.0-2.0x1000-3000 |
Frame Scaffolding Aplication
1.For the top branch building, halls, bridages, viaducts, tunnels and other formwork support within the top.
2.Inside and outside the row grid scaffolding of high-rise building.
3.For active work platform of electrical installation, bull built and other renovation works.
4. For temporary dormitory, warehouse or shed.
5. For the erection of temporary grandstands and bleachers
If you are interested in frame scaffolding and its' parts, please contact Monica
