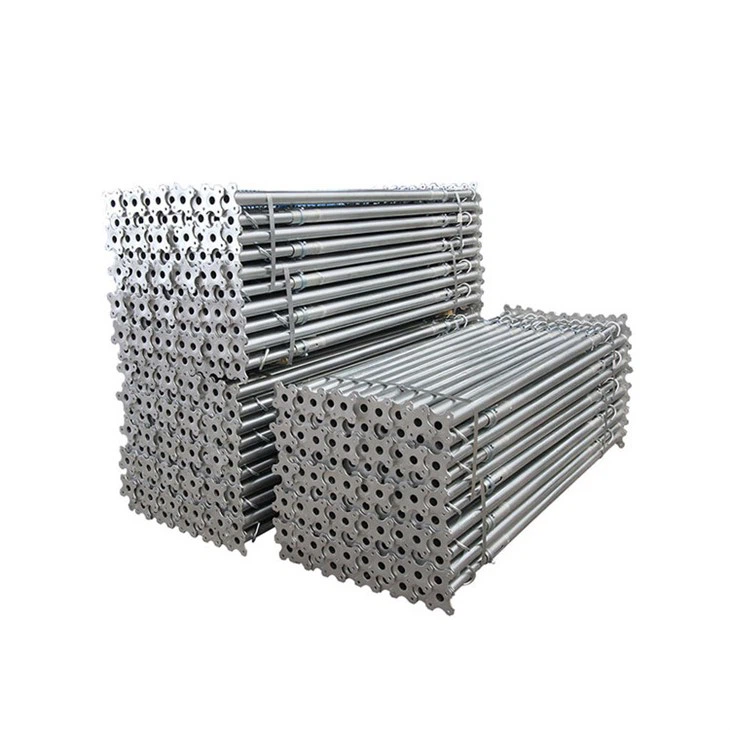

STEEL SCAFFOLDING PROPS

STEEL SCAFFOLDING PROPS

Heavy-duty adjustable steel props provide reliable temporary support for concrete slabs and beams during construction.
✓ Height-adjustable dual-pipe system (accepts custom length requests)
✓ Reinforced base plates & prop nut for stability
✓ Multiple style options to match project needs
✓ Corrosion-resistant materials for longer service life
✓ Complies with EN 1065
Send Inquiry
Chat Now

Product Introduction

Tianjin Tianyingtai Steel Pipe Co., Ltd. is one of the most credible manufacturers and suppliers of steel scaffolding props in China. Welcome to consult the quotation and import cheap steel scaffolding props made in China here from our factory.

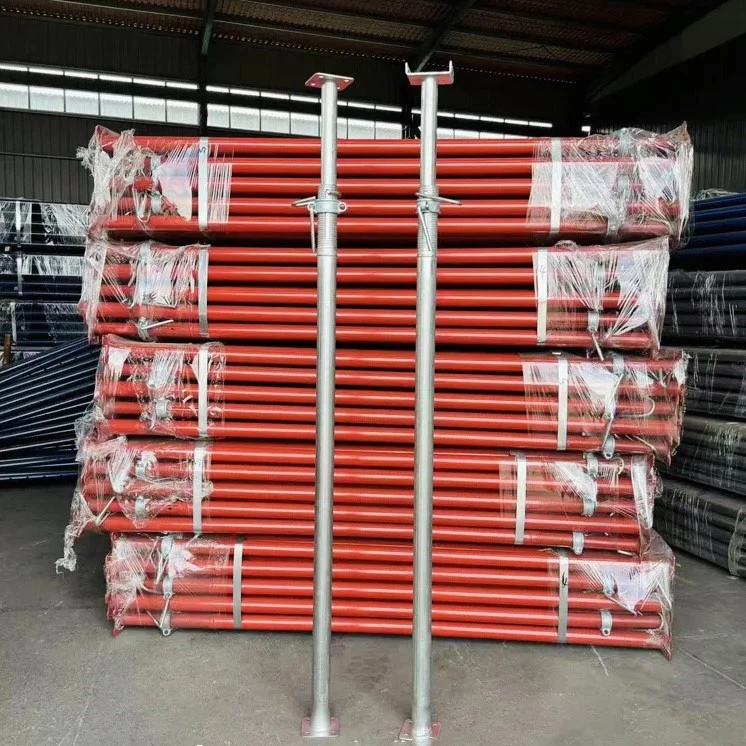

Steel Prop

l Adjustable to different heights

l Accept customization

l Variety of styles

l Longer service life

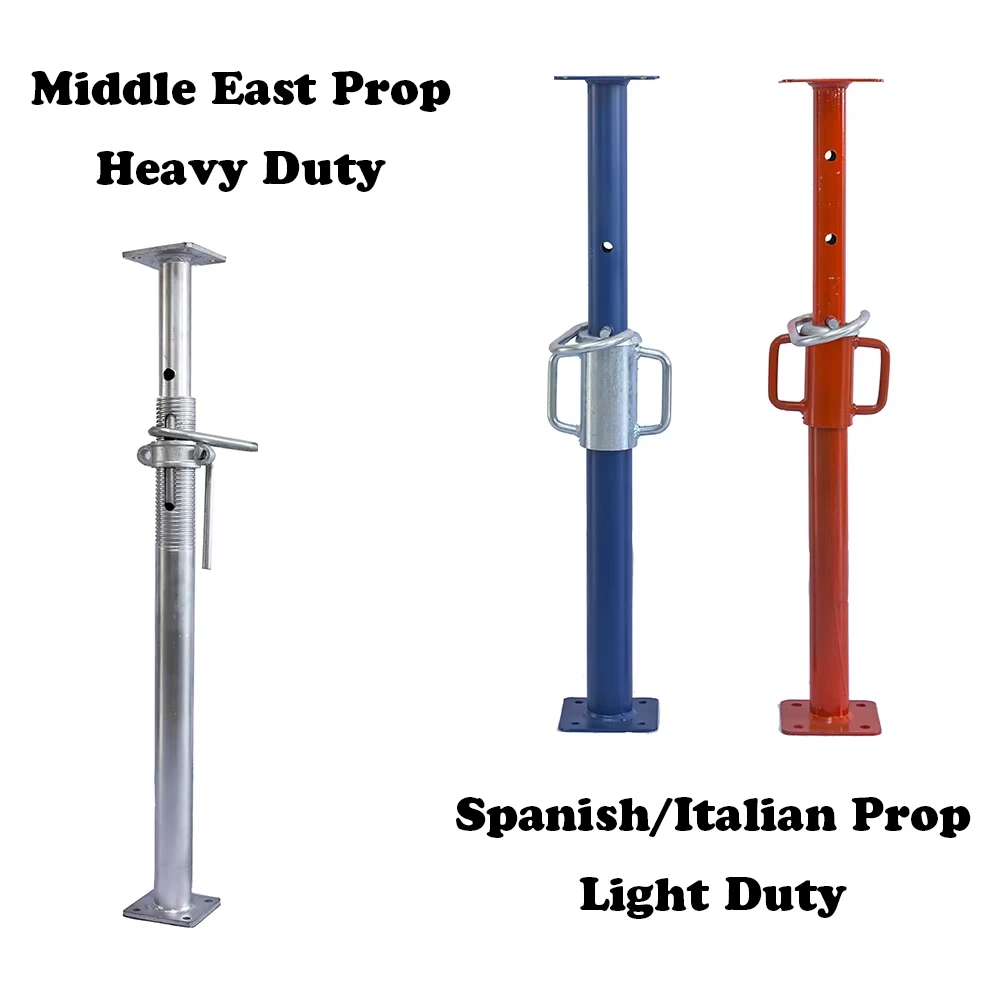

Adjustable steel prop is for supporting concrete slab or beam, it consists of two pipes, two base plate and a prop nut. Its structure makes it can be adjustable to any length within its range. TYT scaffolding construction steel shoring acrow prop have three types, which are Middle East type prop, Spanish type prop and Italian type prop. And also you can choose u head, fork head or T head instead of base plate.

Middle East Type Prop

Adjustable Height
(mm)

Inner Tube OD
(mm)

Outer Tube OD
(mm)

Thickness
(mm)

Surface Treatment

1800-3200

48

60

1.8/2.0/2.2/2.5/3.0



Powder Coated/

Electric galvanized/Painted

2000-3500

48

60

1.8/2.0/2.2/2.5/3.0

2200-4000

48

60

1.8/2.0/2.2/2.5/3.0

2800-5000

48

60

1.8/2.0/2.2/2.5/3.0



Italian Type Prop

Adjustable Height
(mm)

Inner Tube OD
(mm)

Outer Tube OD
(mm)

Thickness
(mm)





Powder Coated/

Electric galvanized/Painted

1600-2900

48

56

1.6/1.8/2.0/2.2

1800-3200

48

56

1.6/1.8/2.0/2.2

2000-3600

48

56

1.6/1.8/2.0/2.2

2200-4000

48

56

1.6/1.8/2.0/2.2



Spanish Type Prop

Adjustable Height
(mm)

Inner Tube OD
(mm)

Outer Tube OD
(mm)

Thickness
(mm)

Surface Treatment

1600-2900

40

48

1.6/1.8/2.0/2.2



Powder Coated/

Electric galvanized/Painted

1800-3200

40

48

1.6/1.8/2.0/2.2

2000-3500

40

48

1.6/1.8/2.0/2.2

2200-4000

40

48

1.6/1.8/2.0/2.2



51

Frame system

l Easy to assembling and simple disassembly

l Good bearing performance

l Safety and reliability



Jack base

l Adjustable

l Hollow & Solid

l Strong and durable



Steel plank

l Excellent bearing capacity

l Nonskid treatment

l Efficient working platform





Coupler

l EN74/BS1139/JIS

l Wide range of styles

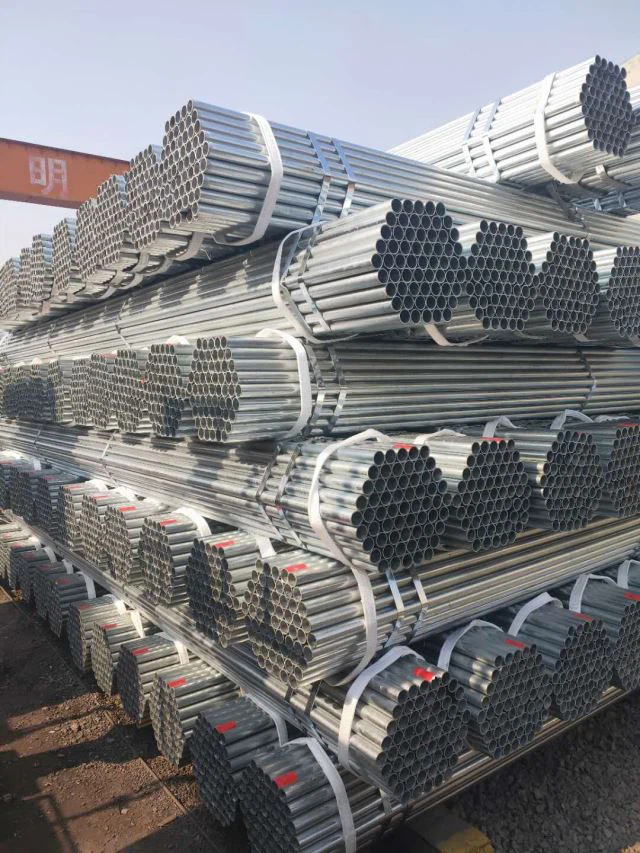

Scaffolding pipe

l Quality guaranteed

l Fast delivery



Ringlock scaffolding

l Safely and repeated benefit

l Multi - functional

l Economic and innovative serve

l Conveniently for construction efficiently, shorter project time

l Simplicity & Stronger
