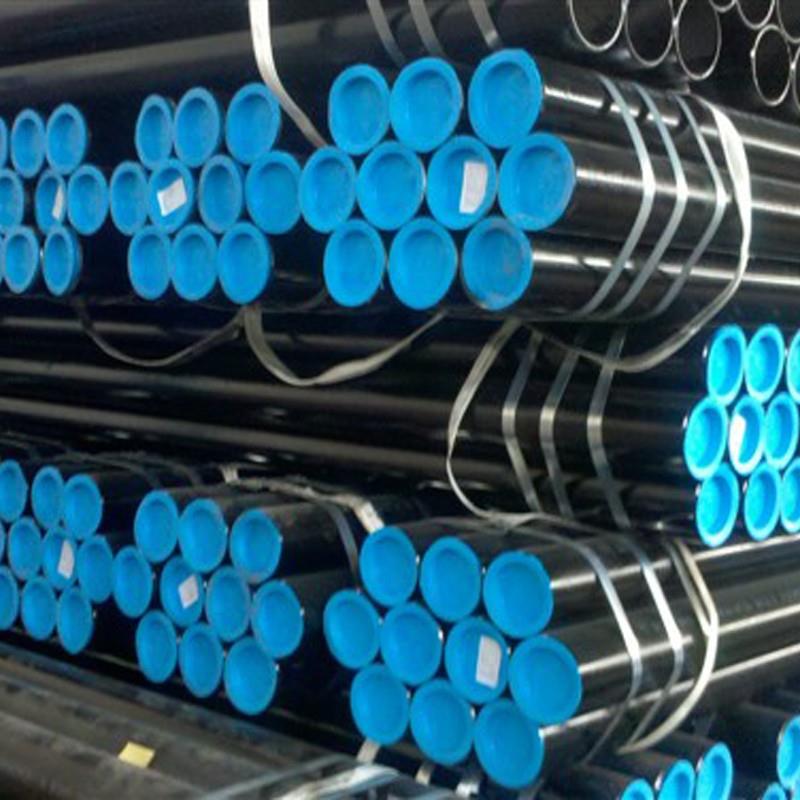

Black Painted ASTM A106/A53/API 5L GR.B SEAMLESS CARBON STEEL PIPE

Standard

API 5L

Material

Gr B,X42,X52,X60,X65,X70

Out Diameter

1/8"-48"(10.3mm-1219mm)

Wall Thickness

Sch5-Schxxs(1.24mm-59.54mm)

Length

1m-12m

Manufacture

Technical

Hot Rolled,Cold Drawn,Hot Expanding

Surface Treatment

1.2PE,3PE

2.Black Painted

3.Anti-Corrosion Oil or according to the customers' requirement

Ends Type

1.Plain Ends

2.Belved Ends

3.Plastic Cap,Iron Steel Cap in both ends

4.EU(External Upset Ends)

5.NU(Non External Upset Ends)

Quality Test

1.With Hydraulic Testing

2.Eddy Current

3.Infrared Testing

Packing

According to the SY/T6194-96 stipulation,the casing pipe is need to In Bulk with steel strip or steel wire,the both ends should be with protection ring

Payment Terms

T/T,L/C

Trade of Terms

FOB,CNF,CFR,CIF

Application

Line pipe is widely used in Carring Gas,Water or Oil in the industries of petroleum and natural gas

Item

Tolerance

Outside Diameter

Pipe Body

D≤101.60mm±0.79mm

D≥114.3mm+1.0%D-,5%D

Coupling

±1%D

Wall Thickness

0,-12.5%t

Weight

Single Lengths

+6.6%-3.5%

Carload Lots

0,-1.75%

Chemical Composition(%)

Grade

C

Si

Mn

P

S

Cr

Ni

Cu

V

≤0.16

≤1.10

≤0.020

≤0.010

-

-

-

Mechanical Properties

Grade

Yield Strength

Tensile Strength

Elogation

Akv

Gr B

245-440Mpa

≥415Mpa

≥22

≥40
