When it comes to concrete formwork and temporary structural support, choosing the right prop can make or break your project's efficiency, safety, and bottom line. Among the various designs available on the global market, Spanish-style adjustable telescopic steel support posts - commonly known as BS Props - have earned a reputation for combining high load-bearing capacity, corrosion resistance, and exceptional adjustability.
In this comprehensive guide, we'll explore why BS Props have become a preferred choice for contractors worldwide, their technical specifications, key applications, and how to select the right configuration for your next project.
(1)What Are Spanish-Style Adjustable Steel Props?
Spanish-style adjustable steel props (also referred to as Acrow props, post shores, or building support props) are vertical, telescopic load-bearing elements used to support formwork, beams, slabs, and other temporary structures during construction.

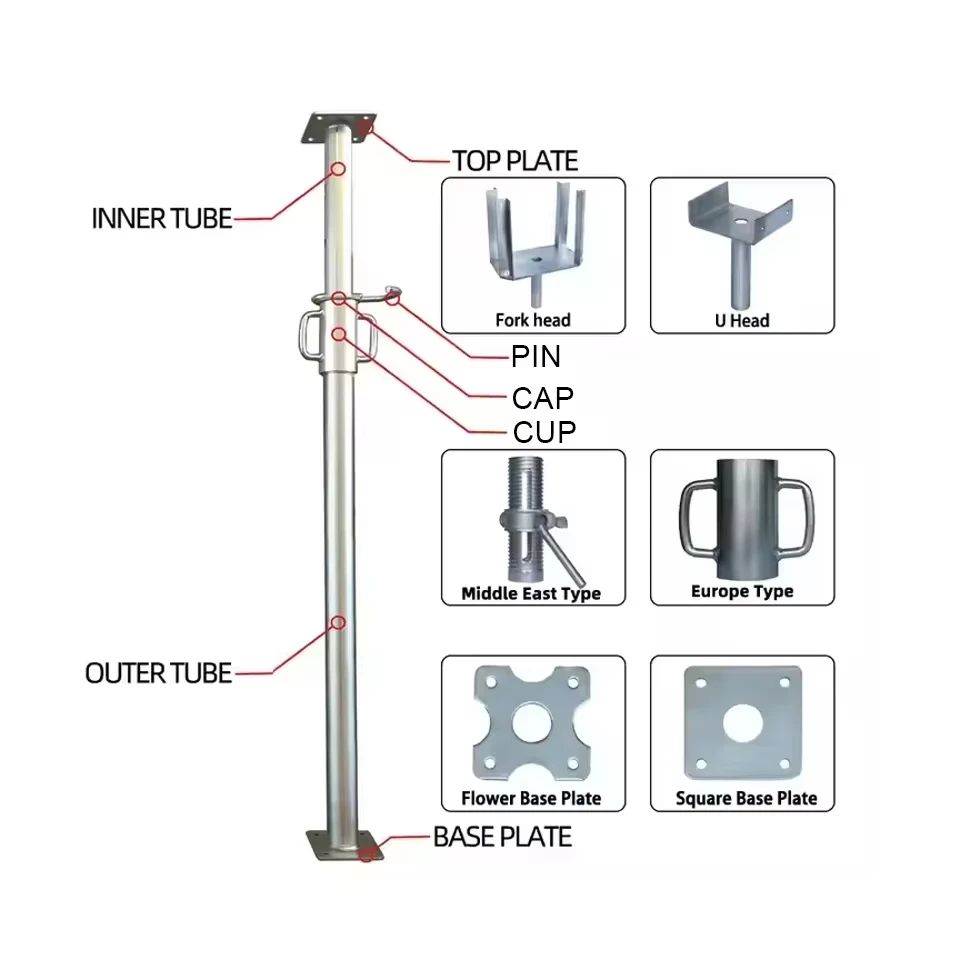

The "Spanish style" design refers specifically to a configuration featuring:
A flat-plate base for stable ground contact
An inner tube and outer tube that slide to adjust height
A threaded collar / nut for precise height locking
A pin-and-hole system for quick coarse adjustment
Pre-galvanized or powder-coated surface treatment for rust protection
Unlike traditional props, BS Props are engineered for rapid deployment, repeated reuse, and demanding outdoor environments.
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Type | Adjustable Telescopic Steel Prop |
| Style | Spanish (Flat-Plate Base) |
| Adjustment Range | 2.2 m – 4.0 m |
| Load Capacity | Typically 15 kN – 30 kN (depending on extension) |
| Surface Treatment | Pre-galvanized / Powder-coated / Painted |
| Inner Tube Diameter | 48.3 mm (standard) |
| Outer Tube Diameter | 60.3 mm (standard) |
| Base Plate | 150 × 150 mm flat plate (reinforced) |
| Warranty | 2 Years |
| Standards | EN 1065 (compliant options available) |
(2)Why Choose Pre-Galvanized Surface Treatment?
One of the standout features of BS Props is the pre-galvanized surface treatment, which delivers several long-term advantages:
1. Superior Corrosion Resistance
The zinc coating forms a protective barrier against moisture, rain, and humidity - critical for outdoor construction sites exposed to harsh weather.
2. Extended Service Life
Pre-galvanized props can last 3–5× longer than standard painted props in aggressive environments, reducing replacement costs over time.
3. Lower Maintenance
Unlike painted props that require re-coating after every project, galvanized props are maintenance-free between deployments.
4. Cost Efficiency Over Lifecycle
Although the upfront cost is slightly higher, the total cost of ownership is significantly lower when factoring in durability and reduced downtime.
(3)Primary Applications
BS Props are designed for vertical load-bearing support across a wide range of construction scenarios:
| Application | Use Case |
|---|---|
| Hospitals & Healthcare Facilities | Supporting formwork for large concrete pours |
| Industrial Plants | Heavy slab and beam support |
| High-Rise Buildings | Multi-story floor formwork shoring |
| Bridges & Infrastructure | Cantilever and pier formwork |
| Residential Construction | Slab, beam, and column formwork |
| Renovation Projects | Temporary structural support |
Advantages of BS Props Over Traditional Props
| Benefit | Description |
|---|---|
| High Strength-to-Weight Ratio | Galvanized steel offers excellent load capacity without excess weight. |
| Fast Height Adjustment | Dual adjustment system (pin + threaded collar) allows precise tuning in seconds. |
| Reusable Across Projects | Engineered for hundreds of deployment cycles, offering strong ROI. |
| Worker Safety | Stable flat-plate base reduces tipping risk; locking mechanism prevents slippage. |
| Versatility | Suitable for slabs from 2.2 m to 4.0 m without additional accessories. |
| Weather-Resilient | Performs reliably in rain, cold, and high-humidity environments. |
(4)How to Select the Right BS Prop Configuration
Choosing the correct prop specification is critical for structural safety and project economy. Consider these four factors:
1. Required Height Range
Measure the clearance height between floor and formwork. Remember to account for the prop's minimum and maximum extension.
2. Load Capacity
Calculate the total dead + live load from wet concrete, formwork weight, and workers. Always apply a safety factor of 1.5–2.0.
3. Surface Treatment
Painted - Indoor, short-term projects
Powder-coated - Medium-duty, semi-outdoor use
Pre-galvanized - Long-term outdoor / harsh environments
4. Project Duration & Reuse Plans
For projects expecting multiple reuses, investing in pre-galvanized props delivers the best long-term value.
Contact our team today for a Free Quote👆, technical drawings, or on-site consultation. We provide total project solutions, including formwork design, prop selection guidance, and global shipping.
