In the scaffolding industry, Ringlock and Cuplock are longtime rivals. Both belong to the modular system scaffolding category, look similar at first glance, and are priced close to each other, but their actual performance varies a lot in real use. Many procurers ask "which one is better" the first time they inquire, but the truth is: there is no such thing as the "best" system - only the one that fits your project best.
In this post, we will break down the two systems in the simplest way possible. You will have a clear answer once you finish reading.
First, Get to Know the Two Systems

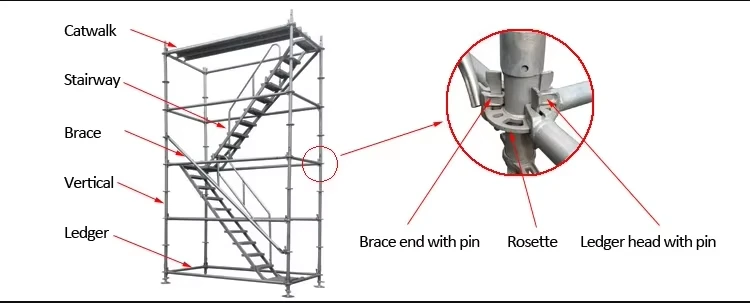

Ringlock Scaffolding

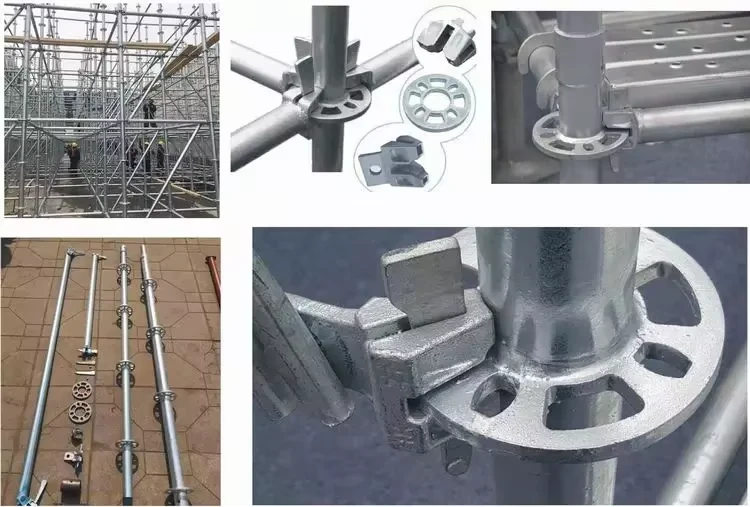

Ringlock is one of the most popular modular scaffolding systems worldwide right now. Its core feature is: a circular rosette is welded to the vertical standard every 50cm. The two ends of horizontal ledgers are fitted with wedge plugs: you only need to insert the plug into the rosette and tap the wedge tight with a small hammer to lock it in place, no extra bolts or fasteners are needed for installation.

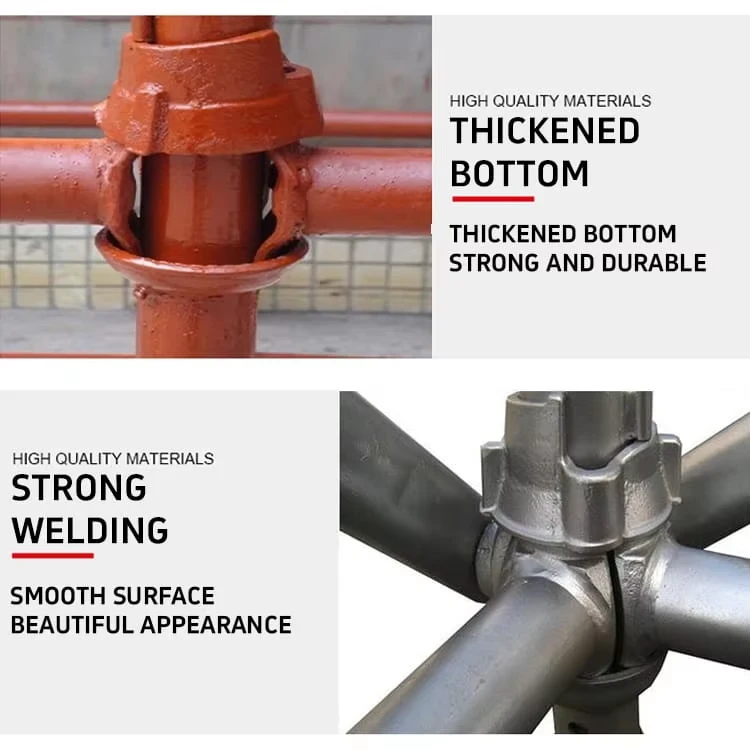

Cuplock Scaffolding
Cuplock is the more "veteran" option, which originated in the UK. Its working principle: a set of upper and lower cup joints are welded to the vertical standard at fixed intervals (usually 50cm). The ends of horizontal ledgers have special plugs: insert the plug between the upper and lower cups, then tap the locking mechanism on the upper cup tight with a small hammer to finish assembly.
You might think "they sound basically the same" from the description, but wait - the difference lies in the details.
Head-to-Head Comparison in 5 Dimensions
1. Node Strength and Stability
Ringlock's disc-style node supports connection of horizontal ledgers and diagonal braces in 4 directions (8 directions for main nodes), with extremely strong torsion resistance. Especially when constructing high-rise structures, heavy-load projects such as bridge piers, stages or grandstands, Ringlock's overall rigidity advantage is very obvious.
Cuplock's cup node only supports 4 orthogonal (90°) connections, and diagonal braces need to be configured separately, so its torsion resistance is slightly weaker. But for regular facade construction, its stability is still fully qualified.
Simply put: Ringlock has higher rigidity, while Cuplock works perfectly well for regular needs.
2. Installation Efficiency
Both are classified as "quick-assembly systems", but Ringlock uses the same type of component for both horizontal ledgers and diagonal braces (only the direction of the plug differs), so it has fewer accessory types and is easier for inventory management. Cuplock uses slightly different plug shapes for horizontal and diagonal components, which requires workers to distinguish directions, and is less friendly for new workers.
In terms of actual work efficiency: one worker can assemble 40-60 cubic meters of Ringlock per day, while for Cuplock the number is around 30-50 cubic meters. Ringlock has a clearer advantage for projects with tight schedules.
3. Safety
Ringlock's wedge self-locking structure comes with anti-misoperation design: if the wedge is not tapped tight, there will be obvious loose feedback, so workers can confirm if it is locked with a visual check. Cuplock's upper cup locking relies more on workers' "sense of touch", and false locking is likely to happen if workers are not fully trained.
For projects with high safety requirements (such as projects in European or Australian markets), Ringlock is almost the default choice.
4. Application Scenarios
| Scenario | Ringlock | Cuplock |
|---|---|---|
| High-rise buildings (over 60m) | ✅✅ Highly recommended | ⚠️ Use with caution |
| Bridges, tunnels | ✅✅ Highly recommended | ✅ Acceptable |
| Industrial plants | ✅ Recommended | ✅ Recommended |
| Regular residential buildings | ✅ Recommended | ✅✅ Classic option |
| Stages, grandstands | ✅✅ Top choice | ⚠️ Not recommended |
| Complex facades / special-shaped structures | ✅✅ Highly flexible | ❌ Limited applicability |
5. Price and Cost
In terms of bare component unit price, Cuplock is 10%-20% cheaper than Ringlock, which is why it is still widely used in many markets. But remember: you need to calculate the total cost instead of only looking at unit price:
Faster installation of Ringlock → lower labor cost
Integrated diagonal brace design of Ringlock → lower accessory cost
Higher reusability of Ringlock (800-1000 reuse cycles) → lower amortized cost
Higher residual value of Ringlock → more active second-hand market
When calculating TCO (Total Cost of Ownership), the cost of the two systems is actually very close.
Simple Decision Guide
You may still wonder "which one should I pick" after reading the comparison. Here is a simple decision logic for you:
👉 If your project is over 60m tall / has special-shaped structures / is on a tight schedule / is for export to Europe or America → Choose Ringlock
👉 If your project is regular residential buildings / industrial plants / budget-sensitive / for domestic use in China → Cuplock is a totally fine choice
👉 If you are familiar with both systems / plan to run a long-term scaffolding rental business → Prioritize Ringlock for higher long-term returns
Final Notes
Scaffolding selection is not a "right or wrong" question, but a "best fit" question. Both Ringlock and Cuplock have been proven by decades of market validation, and are mature and reliable products. What usually affects the success of a project is not the system itself, but the supplier's product quality, completeness of accessories, and after-sales support capability.
📌 Tip: Before placing an order, ask for third-party test reports (such as EN 12810 certification), factory quality system certificates, and request the supplier to provide project cases and on-site technical support. These "soft strengths" are far more important than simply comparing unit prices.
If you are still struggling with selection for a specific project, feel free to share your building height, construction period, budget, and target country with us, and we can provide one-on-one selection advice for you.👉 TYT Scaffolding
